Stock Material Range

Colour
Black / White
Weight
150g/m² to 950g/m²
Composition
Polyester / Polyester Polypropylene Blend
Thickness
16mm to 50mm

Material

NVH / ANTI-RATTLE MATERIALS

We stock a range of felts and non-woven materials suitable for various automotive anti-rattle and NVH (noise, vibration and harshness) applications.

NVH and anti-squeak/rattle materials are essential in automotive interior trim to enhance comfort and perceived quality. These materials reduce unwanted sounds and vibrations caused by mechanical movement, road input and component interaction.

Common NVH materials include polyurethane foams, felt, non-woven fabrics including 3M Thinsulate, elastomers and acoustic barriers that absorb, isolate or dampen noise and vibration.

Anti-squeak and rattle (ASR) materials such as flocked tapes, low-friction films (e.g. PTFE), fabric tapes and soft gaskets are applied between contact surfaces to prevent friction-induced noise. These solutions are strategically integrated behind panels, around clips or along joint lines in doors, dashboards, consoles and headliners.

By combining tailored mechanical damping, acoustic absorption and friction control, NVH and ASR materials significantly improve cabin quietness and tactile quality, contributing to a refined and premium interior experience.

NVH/ANTI RATTLE-MATERIALS

Material Properties

Foam, felt & non-woven materials for insulating, cushioning & acoustic management demands
Cotton, PET & PET/PP fibre base materials

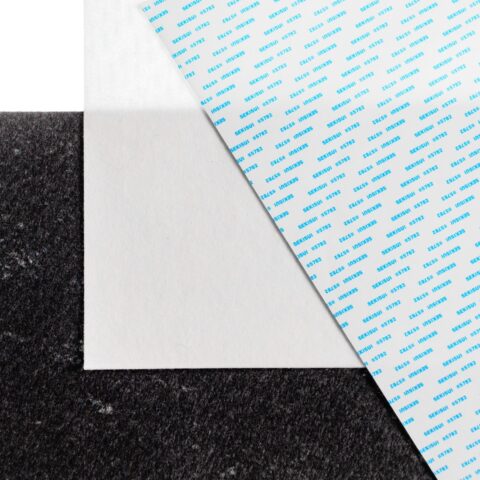

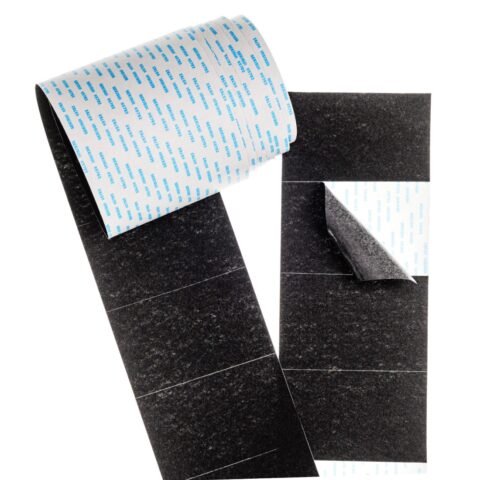

Adhesive-backed, striped adhesive & plain formats. Impregnated blends for thermo-forming processes
Often used as one element of a bespoke, engineered solution. Available as post-consumer recycled content, and suitable for end-of-life recycling
NVH / Anti-Rattle Materials

Markets

Used in the following

Automotive

Domestic Appliances, Electronics & Controls

HVAC, Enclosures & Metal Fabrication

Rail, Marine & Aerospace

Product Overview

This summary shows part of a wider range of products. For full product availability please contact us, detailed technical data sheets are available upon request.

Name Weight (g/m²) Thickness (mm) Composition Scrim Colour FR Properties
M701J 950 50 Polyester Black FMVSS 302
Download Data Sheet
AU4004-6 440 26 Polyester / Polypropylene Blend Black FMVSS 302
Download Data Sheet
TF1500 150 16 Polyester / Polypropylene Blend White FMVSS 302
Download Data Sheet
TF2300 232 27 Polyester / Polypropylene Blend White FMVSS 302
Download Data Sheet
M702D 300 25 Polyester / Polypropylene Blend White FMVSS 302
Download Data Sheet
M703D 300 25 Polyester / Polypropylene Blend Black and White FMVSS 302
Download Data Sheet

Work with us

Why Choose LJA Miers?

We are the materials experts
With access to worldwide sources of the finest raw materials. Extensive stocks available for quick supply, as well as purchasing expertise which will go the extra mile.
We specialise in providing world-class manufacturing capabilities
Continual re-investment in state-of-the-art manufacturing equipment and infrastructure to enable our customers to get quality parts at competitive prices.
Collaborative development process
We listen carefully to understand your needs and budget. Our skilled staff collaborate across departments in innovative ways to solve your problems — and we’ve been doing it for over 70 years.
Consistent & reliable quality standards
Industry accreditations maintained and always a focus on attention to detail means we are well prepared to deliver on time and in full.

Materials

Also avaliable

See all Materials

We have a wide range of materials on offer from foams, textiles & adhesive tapes to solid rubbers. Find more information on each of the product pages. For more technical information on material specifications and our capabilities, please contact our Sales Team.
